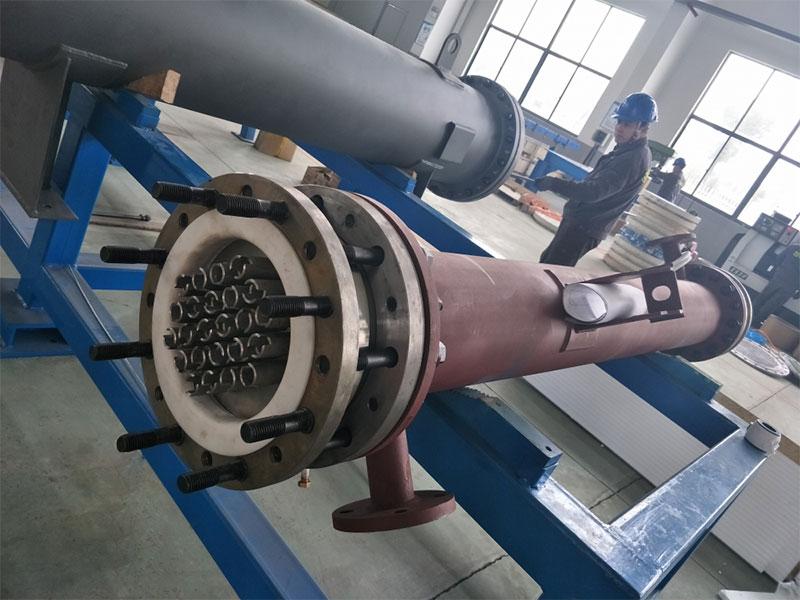

In the sulfuric acid dilution process, the sulfuric acid dilution system heat exchanger quickly cools the energy released during the dilution process. This equipment is resistant sulfuric acid corrosion.

• Maximum design temperature: 250℃
• Maximum design pressure: 1.6MPa
• Maximum heat transfer area: 25㎡
• Maximum design diameter: 500mm

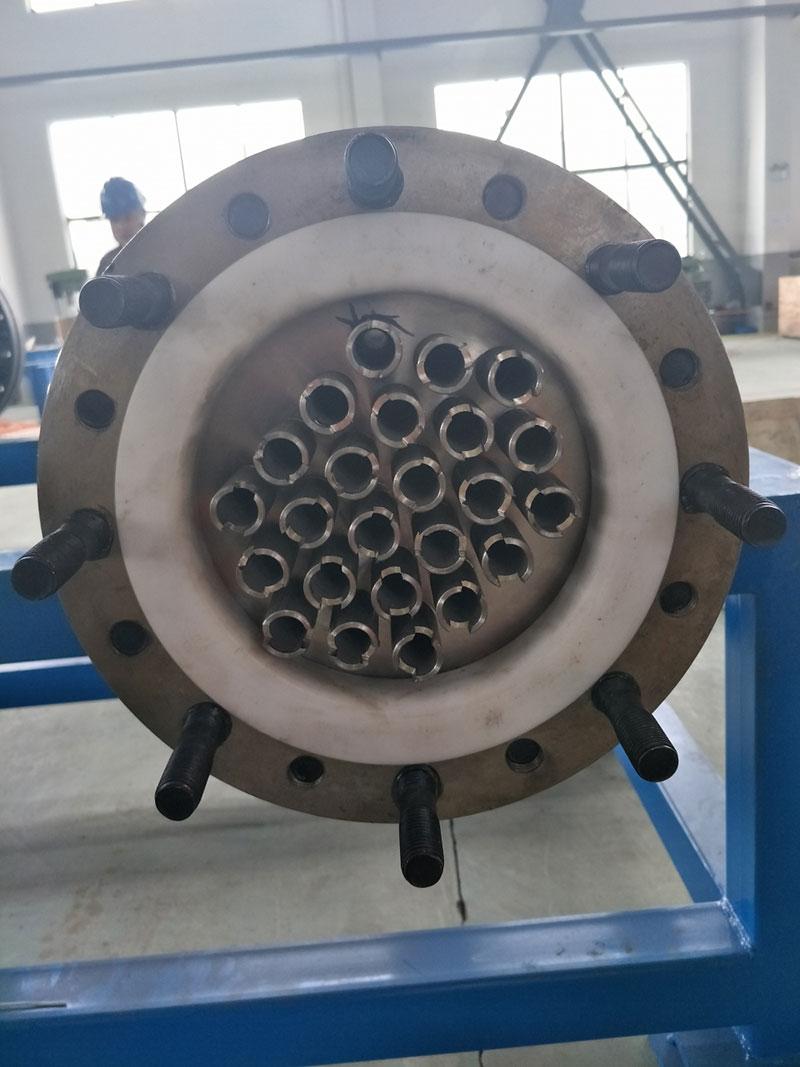

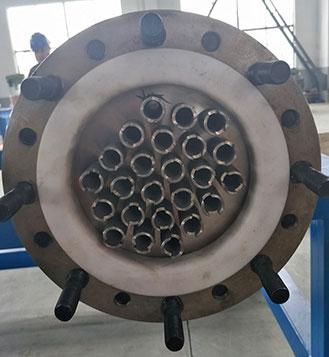

• The sulfuric acid dilution system heat exchanger uses a silicon carbide heat exchanger tube, which features an unmatched performance compared to other products available on the market today.
• The cooling effect of the sulfuric acid dilution system heat exchanger is much better than that of a graphite heat exchanger. The sulfuric acid dilution system heat exchanger completely cools the dilution heat produced during the dilution of concentrated sulfuric acid, thus ensuring a safe dilution process.
• The sulfuric acid dilution system heat exchanger allows for a high tolerance ratio of the concentrated sulfuric acid and dilute water, and the process is easy to control.
• Due to the high strength of silicon carbide, the sulfuric acid dilution system heat exchanger operates normally, even at high temperatures.
• The sulfuric acid dilution system heat exchanger has a relatively simple structure, as well as a smooth and simple operation, which greatly reduces investment and operating cost.
