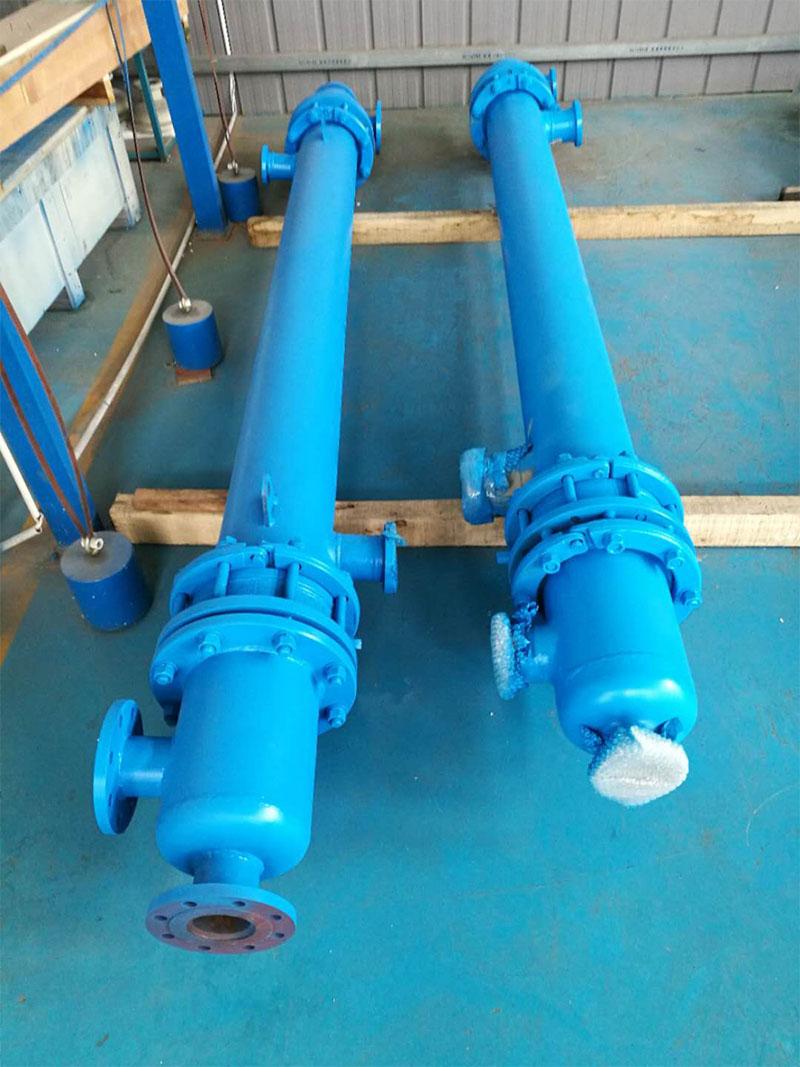

Silicon Carbide Cooling System Heat Exchanger

Application:

As a cooling component, a silicon carbide cooling system heat exchanger can withstand corrosion of strong acid and strong alkali in the gas concentration, off-gas absorption and hydrochloric acid analysis and absorption system.

Parameter:
  • Maximum design temperature: 150℃
  • Maximum temperature in-service: 100℃
  • Maximum design pressure: 0.6MPa
  • Maximum pressure in-service: 0.3 MPa
  • Maximum heat transfer area: 50㎡
  • Maximum heat transfer area in-service: 45㎡
  • Maximum design diameter: 600mm
  • Maximum diameter in-service: 600mm
Characteristics:

By using a silicon carbide tube as its cooling component, due to its ability to withstand strong acid and alkali corrosion, the silicon carbide cooling system heat exchanger’s service life is significantly improved. In addition, the silicon carbide cooling system heat exchanger features a high thermal conductivity, small size and low cost.

Related
SiC heater, anticorrosive equipment, corrosive heater exchanger
Inquiry Form
Contact Us

Wuxi Innovation Technology Co., Ltd.

Add.: 19#,Jinhui Road,Huishan District, Wuxi City, Jiangsu Province, China.
Contacts: Peter Tsao
Moblie: +86-18114106791
E-mail: cb@innovationtec.cn
WhatsApp: +86-13813843213

Other Products

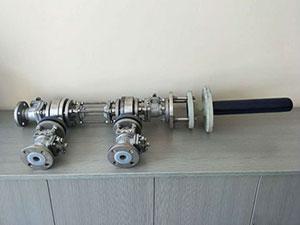

High Pressure Temperature Corrosive System SiC Anticorrosive Sample TakerHigh Pressure Temperature Corrosive System SiC Anticorrosive Sample Taker
